The DCCZ 7-15 roaster

Chike Machinery's model DCCZ 7-15 use Electromagnetic heating, it’s energy-saving and environmentally friendly. The drum body is evenly heated. The intelligent temperature control automatically releases the pot and automatically turns it over. The material in the pot reaches the set mature temperature value and the device automatically alarms. It is a very intelligent fully automatic drum roaster.

Cellphone：+86 15893717199

Send E-mail Get Price

Details

Model	Capacity	Roast time	Heating power	Motor power	Voltage	Overall size(mm)	Size of drum(mm)
DCCZ 7-15	50-250kg/h	20-35minutes	6-48KW/8grades	1.5kw	380V/50HZ Three phase	2000X9500X1520	700x1500

Main image

Trade Terms

1.Price term: EXW,FOB,CIF,CNF,DDU

2.Materials: Main body 304# Stainless steel, the batch 430# Stainless steel.

3.Payment: TT,L/C,Paypal,Alipay,Wechat,Credit card.

4.Delivery time: supply in stock, production line need 20-30working days.

5.Working life: 8years.

6.Customized service: accept. MOQ: 5sets

7.Supply quantity: 100sets/month

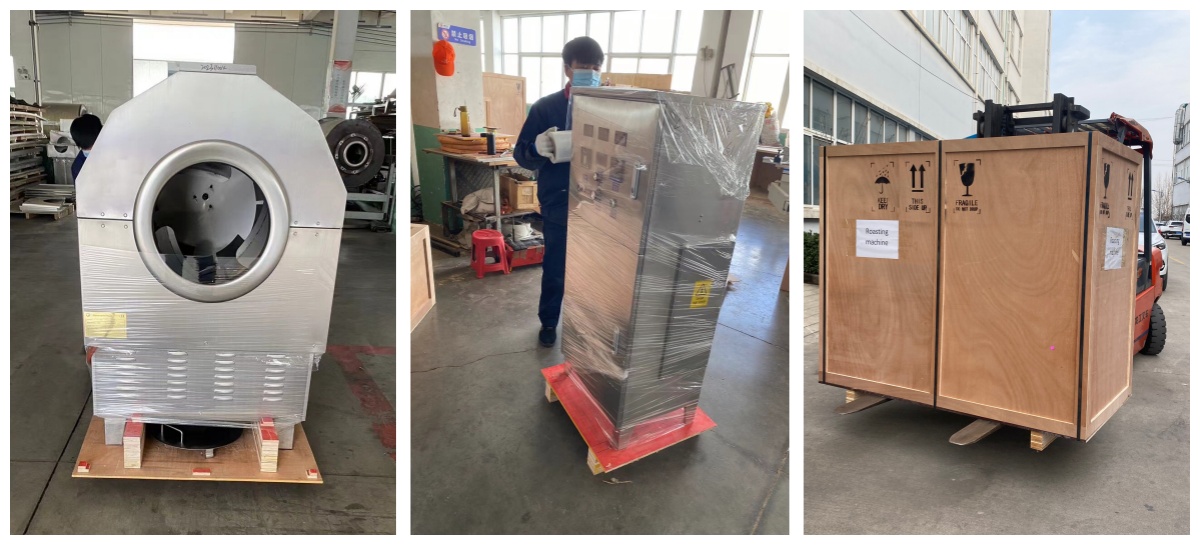

8.Package: packing in ply wooden case.

9.Shipping term: by sea, by air and by train.

10.Warranty term: 2years.

11.Installation: If buyers need,Chike Machinery will send the engineers to customer's site.Chike Machinery will supply the instruction and video of installation for free.

Application

roast, heat and dry the materials as follow:

Nut processing: sunflower seeds,peanut,chestnut,cashew nut,almond,walnut,etc.

Oil production line: sesame seeds,rapeseed,soya bean,peanut,sunflower seeds,etc.

Tea processing: tea leaf &Tartary buckwheat.

Chemical industry: heat and drying the chemical industry materials.

Condiments processing: chili,pepper,aniseed,etc.

Chinese medicine processing: medicine pieces

Feed processing: fish feeds powder.

Grain processing: corn,broom corn,rice,millet,barley and wheat.

Roast nuts parameter list

Roast nuts parameter list(Just for reference)
Reference data	Cashew nut	Almond	Pistachio nut	Chestnut
Reference data
Salt	With/without salt	With/without salt	With/without salt	With sand
Temperature	170	165	175	155
Heating grade	P2	P2	P3	P3
Roasting time(minute)	20mins	18mins	25mins	30 mins
Capacity/barrel	200kg	200kg	200kg	150kg
